Features	Detection of AC leakage current, large current, high harmonic current, complex waveform current, transient impulse current, phase, electrical energy, power, power factor, etc.

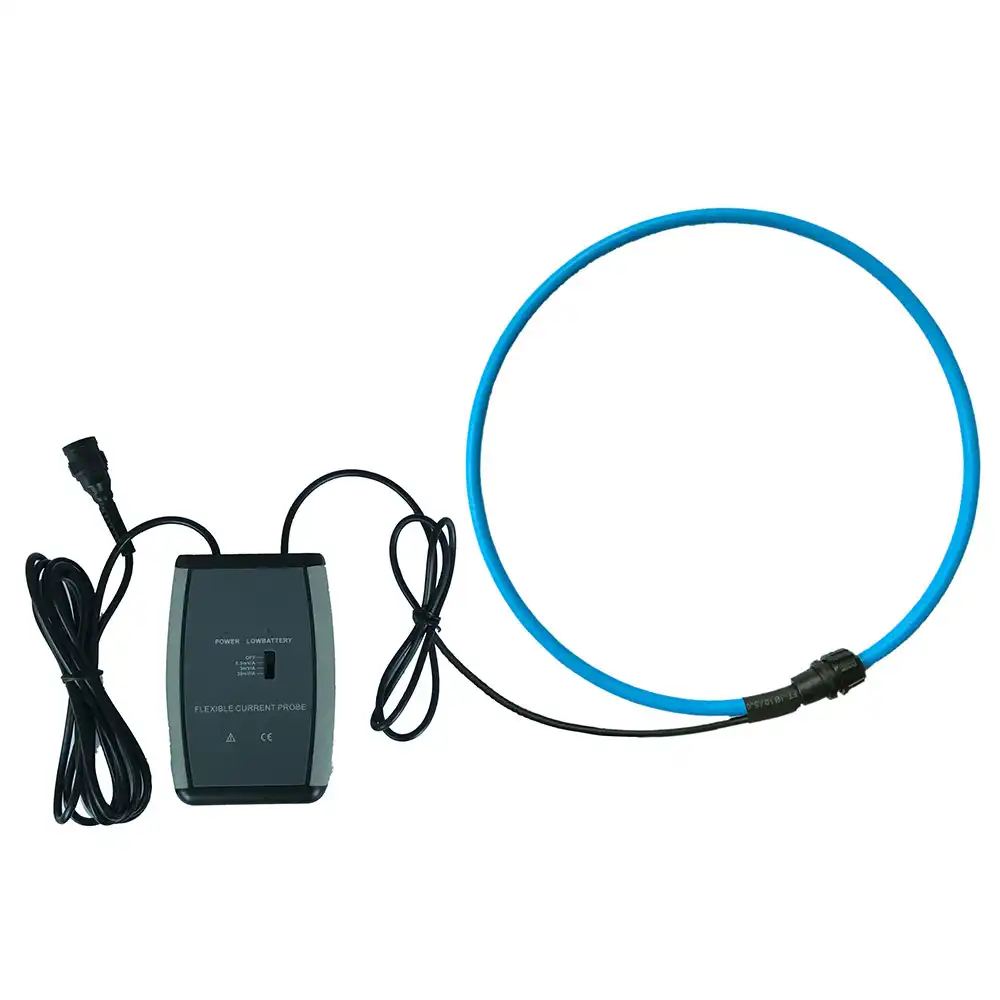

Detection method	Flexible CT: The output signal is the differential of the current to time. By integrating the output voltage signal, the input current can be truly restored

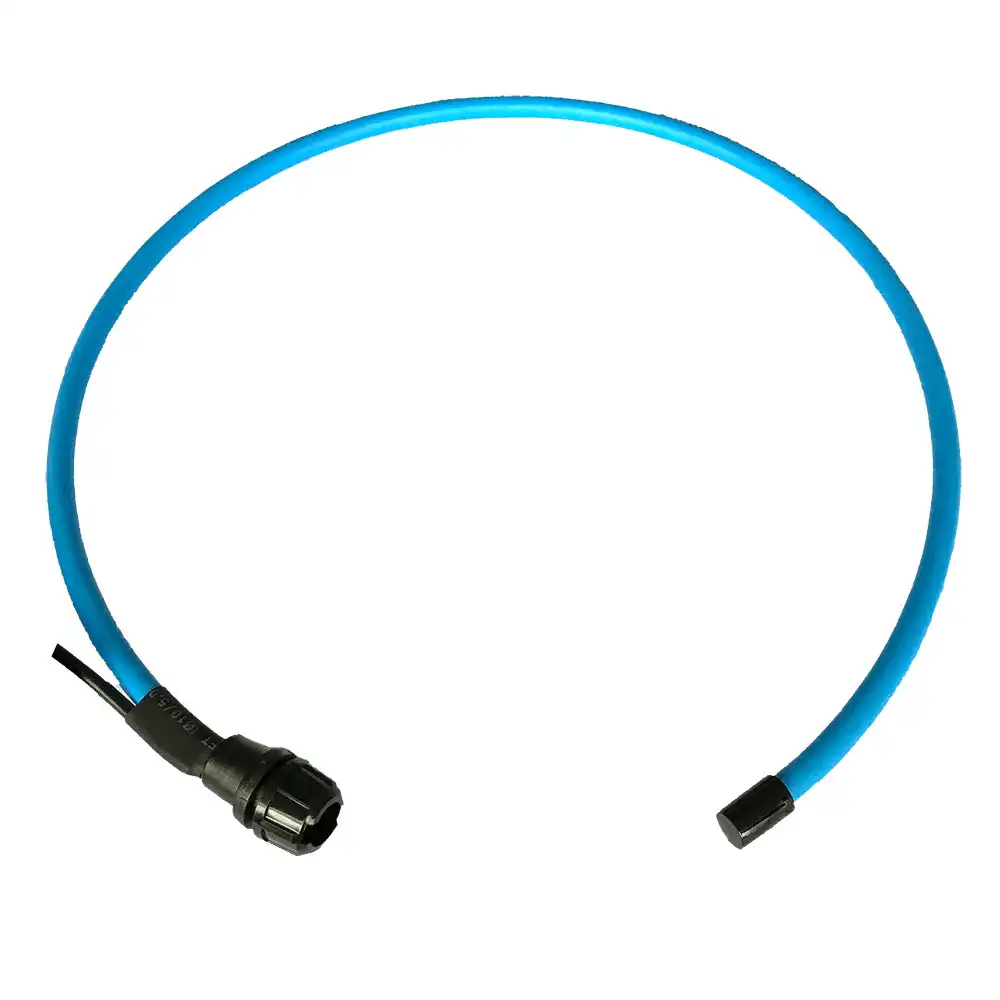

Coil diameter	φ8mm
Range	0A～10kA
Resolution	0.1A
Output	0.3mV/A 3mV/A 30mV/A third gear (0-5V, 4-20mA and other outputs can be customized)
Power supply	9V 6F22 battery
Low battery indication	Have
Power consumption	The voltage output is 6 mA, and an alkaline dry battery is expected to continuously supply power for 80 hours
Accuracy class	±1.0%FS (50Hz/60Hz); 23℃±2℃, below 70%RH, the wire is in the center of the coil)
Phase error	≤1°(50Hz/60Hz; 23℃±2℃)

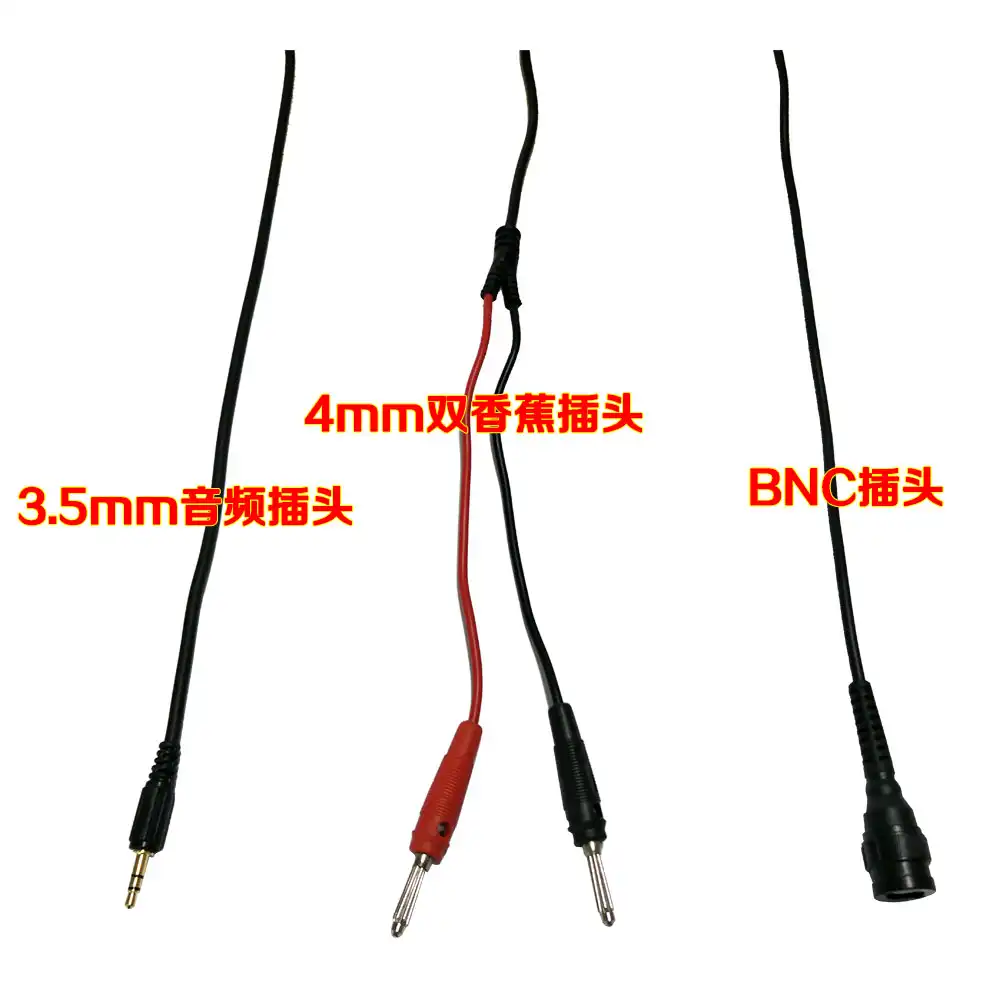

Output Interface	BNC connector (optional audio plug, banana plug, bare wire)
Output cable length	2m
Electric field disturbance	No hysteresis effect, no external electric field interference
Wire position	The tested lead is in the center of the coil, and the influence of position error is ≤±0.3%FS
Response frequency	0.1Hz～10MHz
Line voltage	Line test below AC 1000V
Working temperature and humidity	-20℃～50℃; below 80%rh
Storage temperature and humidity	-10℃～60℃; below 70%rh
Dielectric strength	AC 2000V/rms (both ends of the coil)
Suitable for safety regulations	IEC1010-1, IEC1010-2-032, Pollution Degree 2, CAT IV 1000V
Random accessories	Sensor: 1 piece
